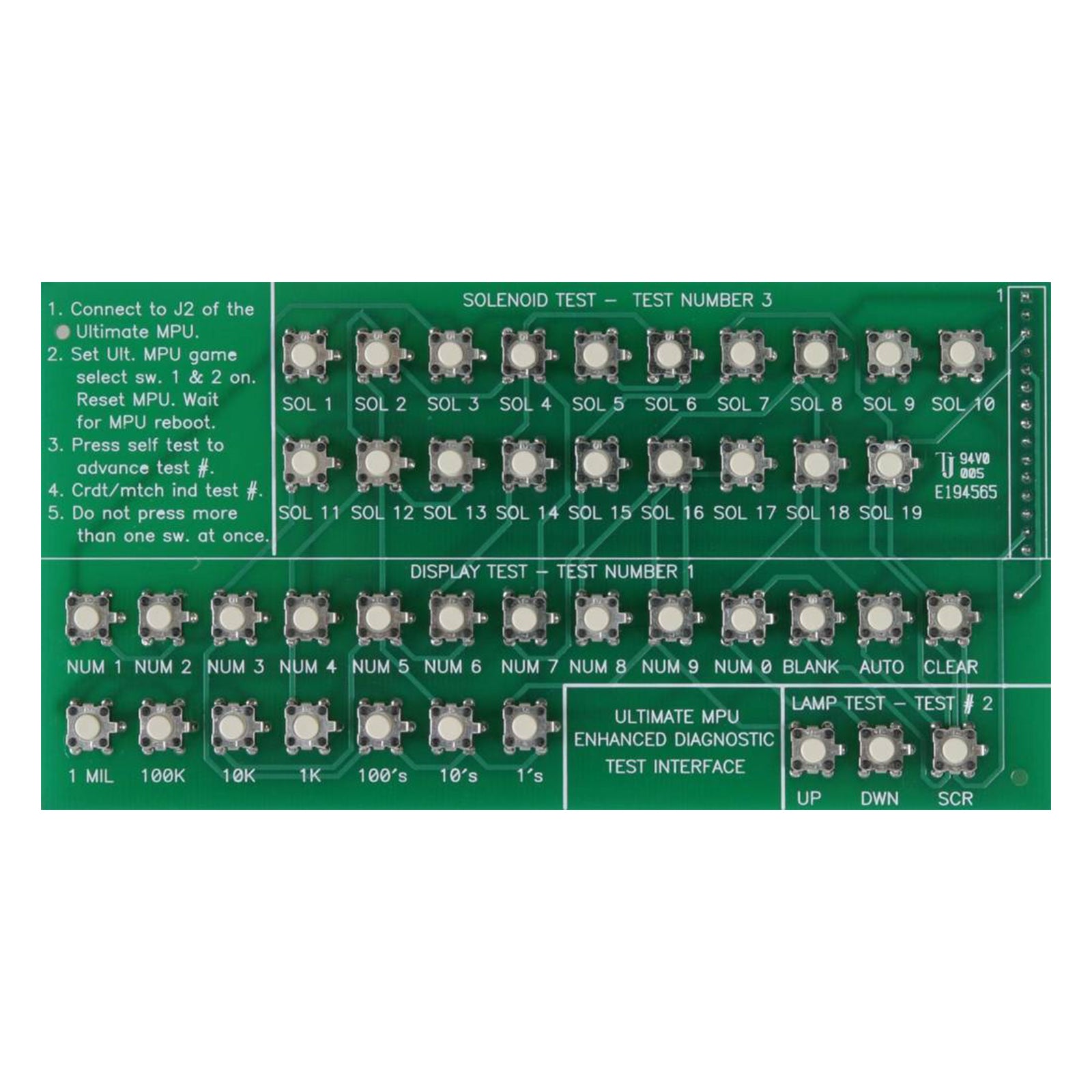

ALLTEK - Bally/Stern Ultimate Test Card
Description
Main Features:
-
It's so easy to Use! The test card plugs into the J2 connector of The Ultimate MPU Board. Setting the game select dipswitch to Enhanced Diagnostics Mode activates the test.
-
Carry it in your toolbox. Actual Size: 3" * 6"
-
Manual included. Instructions also silk-screened on board.
-
Individually labeled switches. No need to memorize anything.
-
Improved Solenoid Test - One solenoid can be activated at a time. No more cycling through all solenoids just to test one!
-
Improved Lamp Test - Allow you to activate one lamp at a time. Useful when you have a couple of lamps out that need to be repaired. Or you can active lamps by rows and columns.
-
Improved Display Test - Any digit can be inserted in any display position. Troubleshooting bad digits on a display is now a snap!
-
Board plugs onto the Ultimate MPU Board.
-
Only one test card needed if you have multiply Ultimate MPU Boards.
-
Only works with the Ultimate MPU Board.
Alltek
