Stern SPIKE System Plug-N-Play Quiet Fan Kit - 500W
Description

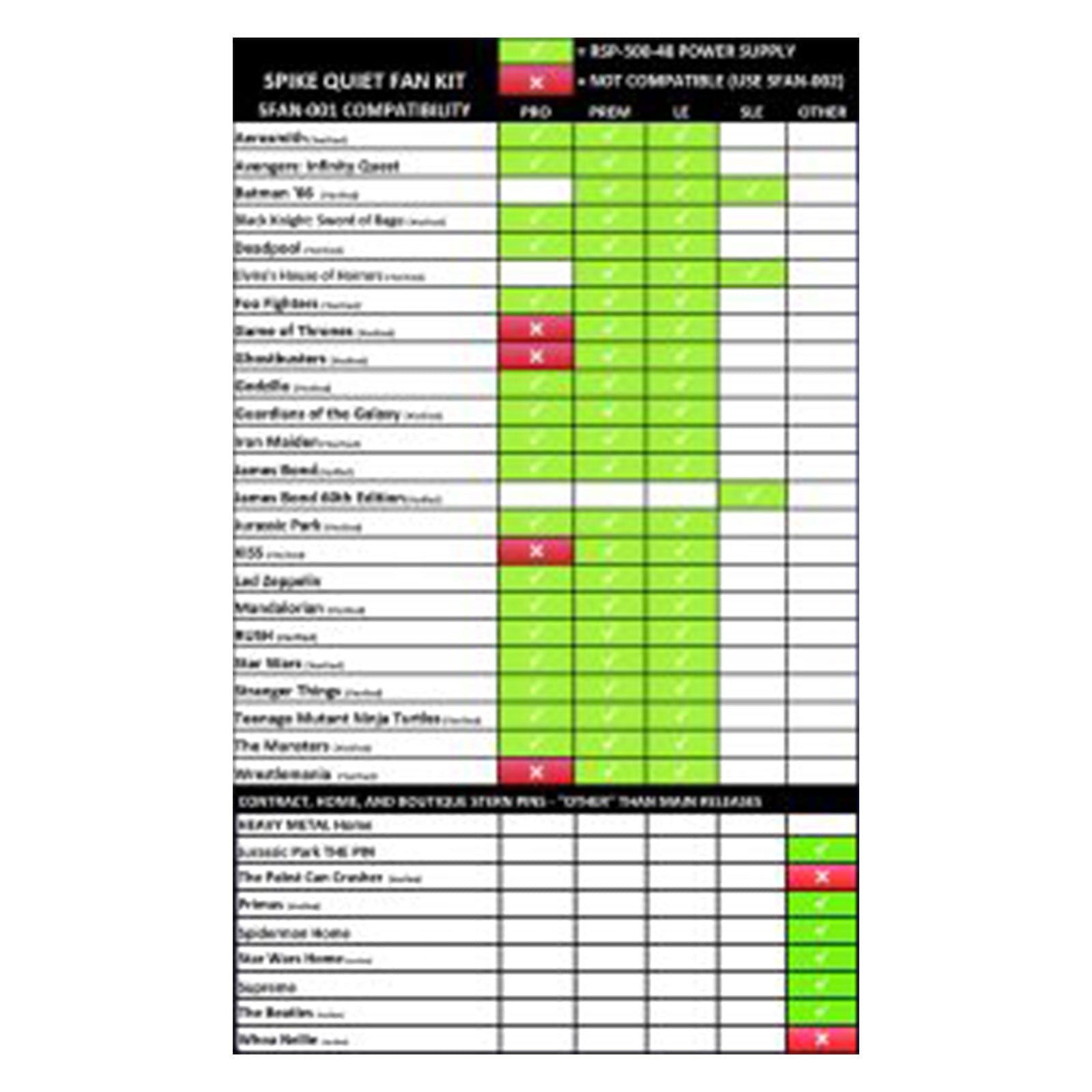

Game Compatibility List - See Second Photo
Anyone that has a Spike pinball machine knows that the fan is WAY TOO LOUD and really annoying, especially in a home environment.
This fan kit is designed to replace the stock 34.6dB fan in Stern Spike power supplies to make it almost silent. This replacement 12.8dB fan has less CFM (airflow) than the Stern one, but the practical difference is that the fan simply runs a bit longer to drop the temp back down to ~104F or less once the temperature in the power supply turns it on. In testing with this fan installed on multiple machines, the RSP-500-48 power supply never exceeded ~122F (the power supply critical shutdown threshold is ~158F), however, all possible pinball machine configurations cannot be known, so you are installing this kit at your own risk.

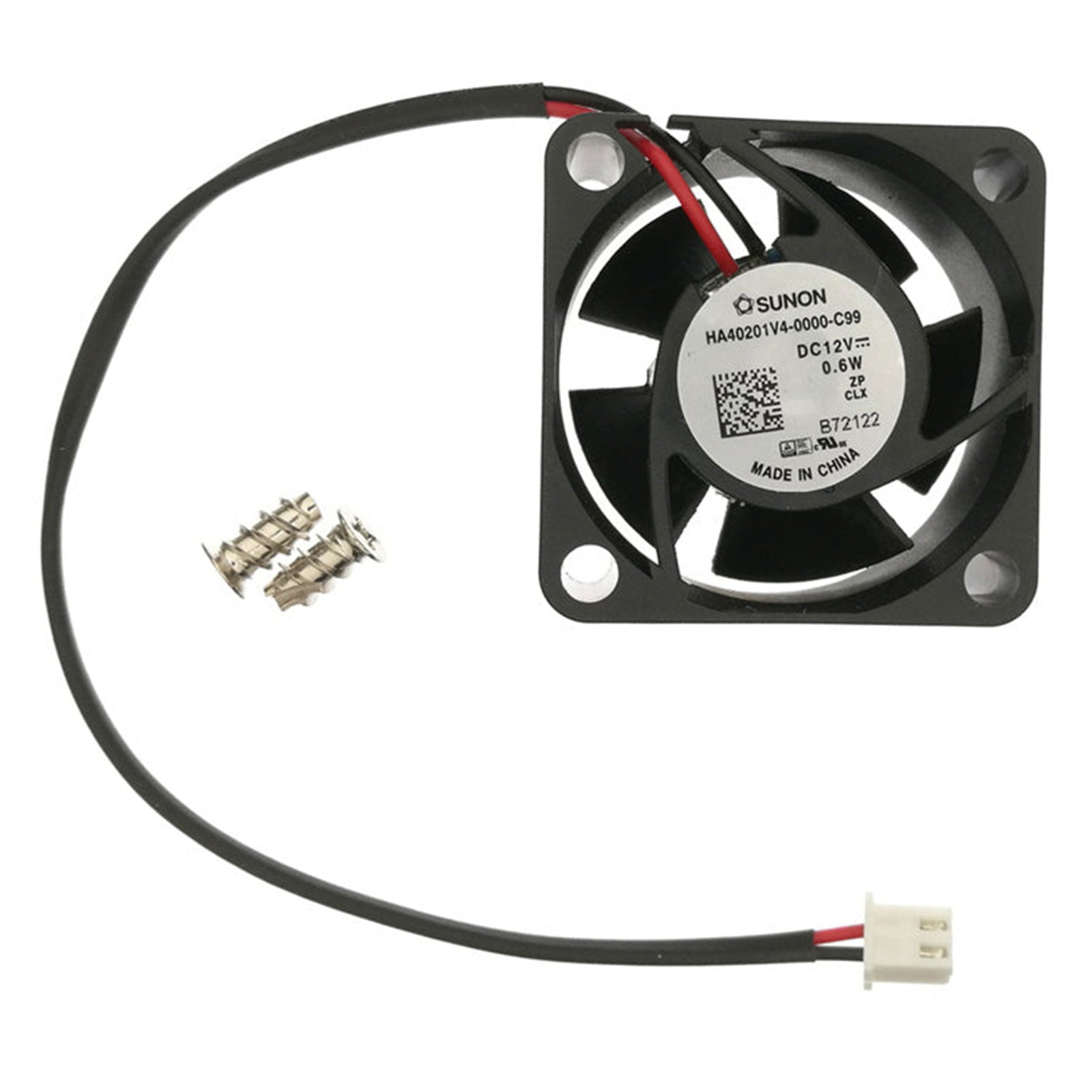

The kit includes the fan with custom wire length and connector, two thread-cutting screws, and illustrated installation instructions.
Another great product from The Pinball Monk!
Another great product from The Pinball Monk!
See secondary picture for compatibility list.
Frequently Asked Questions:
1. How loud is the Stern Fan? How quiet is the Pinmonk one?
Meanwell has used two different fans in the power supplies Stern uses, both
are very loud. The current one is the loudest of the two. Depending on which
one is in yours, the noise is between approximately 34dB and 38dB. The
Pinmonk fan is less than 13dB. Since decibels aren't linear that's about
10x quieter.
2. Since this fan pushes less air, does the fan come on more often?
The Meanwell power supply Stern is using has a thermal scheme that dictates
when the fan comes on, and when it turns off. For the 500w version, the fan
comes on when it hits 122 degrees inside the power supply and stays on until
the temperature comes down below 104 degrees, when it turns off. So the fact
that the Pinmonk fan kit pushes less air than the stock fan just means that
it runs slightly longer when it does come on to bring it down to <104F
again. It does not mean the fan comes on more often than a stock fan.
3. But if the fan's quiet, how will I know when it fails? Will it burn up my
power supply if it isn't cooled?
If the fan fails, the worst that can happen is the power supply will
gradually throttle power due to the built-in failsafe system on the power
supply. The power supply's failsafe begins throttling power if the
temperature exceeds 122F and if the temperature continues rising (if the fan
failed, for example) then a power-off trigger kicks in at 158F to protect
the power supply and machine it's attached to. There is no danger of a

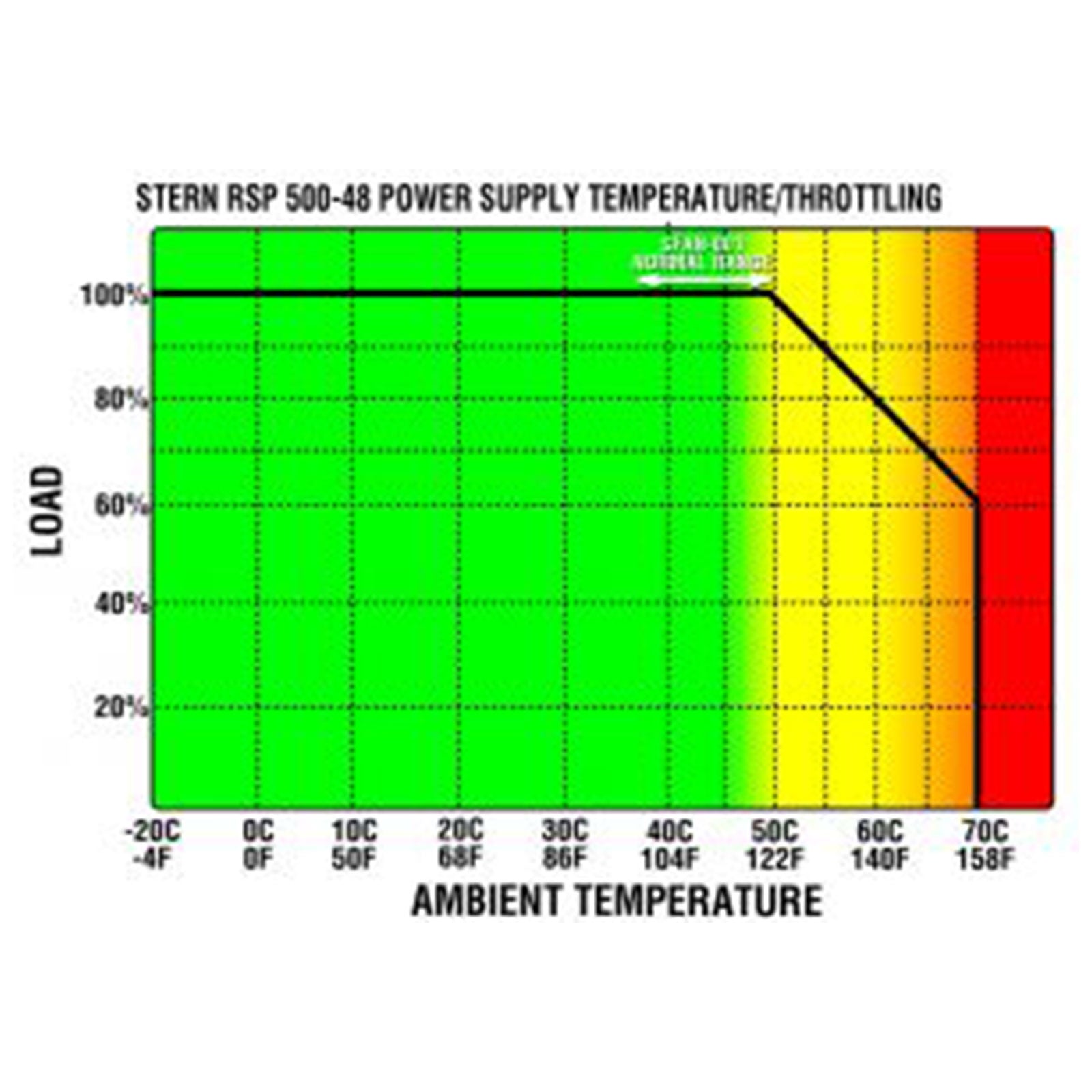

failed fan damaging a machine or the power supply as a result. See the temp
throttling chart for the power supply on the photo attached to see the
throttling curve. If a fan fails (and we don't know of a Pinmonk quiet fan
kit failing in more than 3 years of selling these), you'd just replace the
fan and the power supply would be back in business. It would not "burn up."
Meanwell has used two different fans in the power supplies Stern uses, both
are very loud. The current one is the loudest of the two. Depending on which
one is in yours, the noise is between approximately 34dB and 38dB. The
Pinmonk fan is less than 13dB. Since decibels aren't linear that's about
10x quieter.
2. Since this fan pushes less air, does the fan come on more often?
The Meanwell power supply Stern is using has a thermal scheme that dictates
when the fan comes on, and when it turns off. For the 500w version, the fan
comes on when it hits 122 degrees inside the power supply and stays on until
the temperature comes down below 104 degrees, when it turns off. So the fact
that the Pinmonk fan kit pushes less air than the stock fan just means that
it runs slightly longer when it does come on to bring it down to <104F
again. It does not mean the fan comes on more often than a stock fan.
3. But if the fan's quiet, how will I know when it fails? Will it burn up my
power supply if it isn't cooled?
If the fan fails, the worst that can happen is the power supply will
gradually throttle power due to the built-in failsafe system on the power
supply. The power supply's failsafe begins throttling power if the
temperature exceeds 122F and if the temperature continues rising (if the fan
failed, for example) then a power-off trigger kicks in at 158F to protect
the power supply and machine it's attached to. There is no danger of a
failed fan damaging a machine or the power supply as a result. See the temp
throttling chart for the power supply on the photo attached to see the
throttling curve. If a fan fails (and we don't know of a Pinmonk quiet fan
kit failing in more than 3 years of selling these), you'd just replace the
fan and the power supply would be back in business. It would not "burn up."
