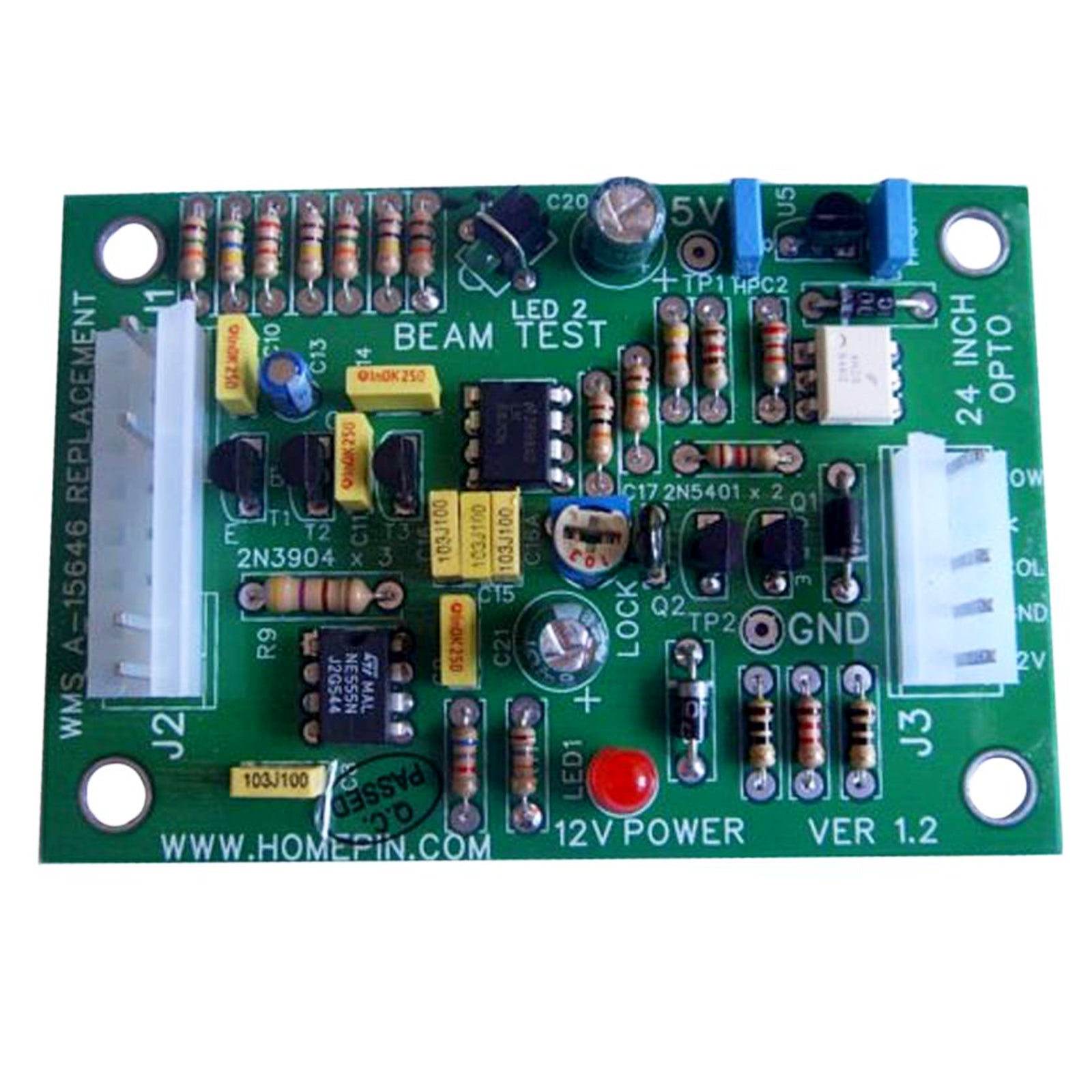

Homepin - 24 Opto Replacement Board: WMS A-15646
Description
This redesigned 24" opto board is used as a "Mist Ball" sensor for Williams Bram Stoker's Dracula and as a suitable replacement for Star Wars Episode 1 (Pinball 2000) & The Shadow (Bally).
FEATURES:
This board also suits Star Wars Episode 1 part #A-15646-4 (Pinball 2000) & The Shadow (Bally)
Direct replacement for the original board - uses the same sensors mounted in the machine
Supplied ready made and fully tested - NOT a kit:
Uses commonly available parts so there will be no future repair issues
No electronic knowledge required - simply remove four screws and 3 plugs and new board mounts in exactly the same position as the original
Additional NEW right angle LED mounted on the board to indicate operation of the beam - visible by looking through the coin door
NO modifications at all to the original machine in any way and NO soldering required
Board can be removed at any time in minutes and leave no trace it was ever in the machine
All you need is a nut driver and about five minutes:
- No 'hard to find' choke or difficult to find parts are used
- Replaces A-15646, A-15646-2, A-15646-4, PCB# 5768-13243-02
- No need to turn off the Mist Ball feature that is unique to BSD
BLY/WMS reference #A-15646, A-15646-2, A-15646-4, 5768-13243-02
